Triangles with 6 holes

Available on request

Triangles with 6 holes in 2 sizes.

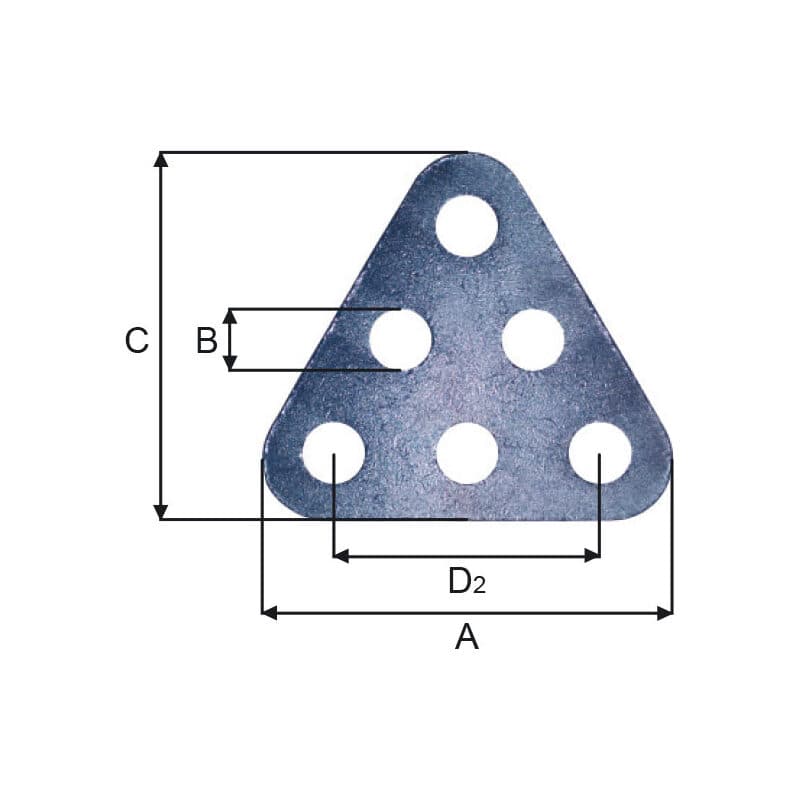

Triangles with 6 holes — manufacturer dimension drawing

Specifications

Sizes tabulated2

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

2 sizes available. Quote by part number, or send us the load and we'll size it.

Triangles with 6 holes — sizes and part numbers
Part no.Thickness(mm)A(mm)B(mm)C(mm)D2(mm)Weight(kg)
E6020205301861313.3
E6125280352551809.0

Scroll the table sideways for all 7 columns.
