Swivels — Steel, Tapered roller thrust bearing, Greaseable (A806-16–AT832-32)

Available on request

Steel swivels in 5 sizes, 6.4–32 ton WLL.

Specifications

Material / finish	Steel
Configuration	Tapered roller thrust bearing, Greaseable
Working load limit	6.4–32 ton
Sizes tabulated	5

Missing a spec? It's available on request — send us your requirement.

5 sizes available. Quote by part number, or send us the load and we'll size it.

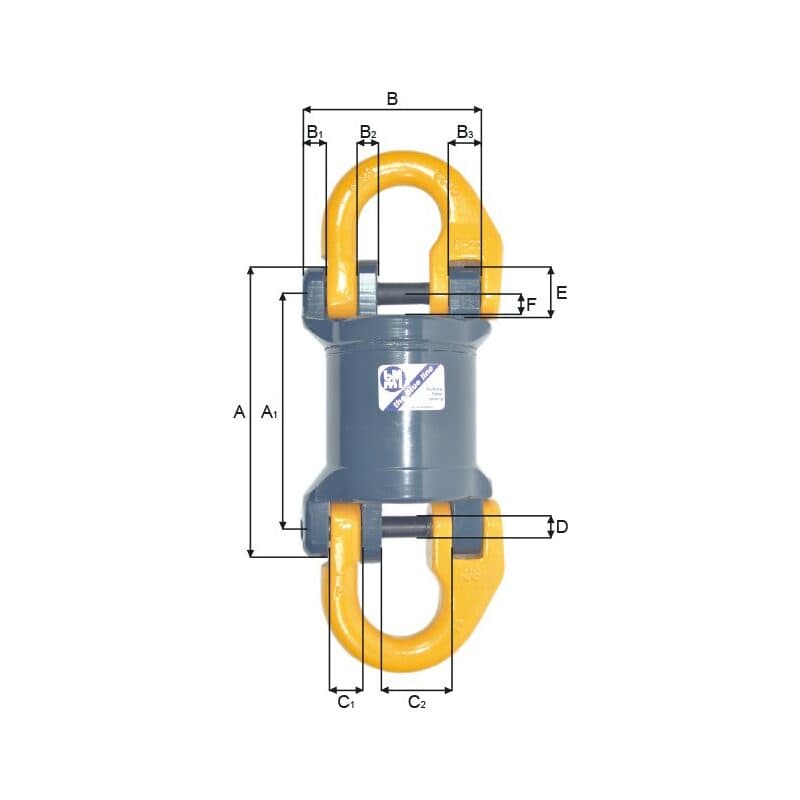

Swivels — Steel, Tapered roller thrust bearing, Greaseable (A806-16–AT832-32) — sizes and part numbers
Part no.	WLL 5:1(ton)	A(mm)	A1(mm)	B(mm)	B1(mm)	B2(mm)	B3(mm)	C1(mm)	C2(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)
A806-16	6.4	199	168.5	90.5	13	10	14.5	17.5	35.5	12.5	32	16.5	9.0
AT810-19	10.0	193	165.0	115.0	13	11	18.0	18.0	43.0	14.0	37	20.0	9.0
AT812-22	12.0	200	165.0	135.0	17	14	22.0	23.0	49.0	17.0	40	20.0	9.7
AT817-26	17.0	250	208.0	150.0	21	16	25.0	27.0	57.0	20.0	53	29.0	17.3
AT832-32	32.0	387	329.0	183.0	27	22	34.0	29.0	70.0	25.0	65	32.0	47.0

Scroll the table sideways for all 14 columns.
