Swivels — Steel, Tapered roller thrust bearing, Greaseable (A401–AT445)

Available on request

Steel swivels in 10 sizes, 1–45 ton WLL.

Specifications

Material / finish	Steel
Configuration	Tapered roller thrust bearing, Greaseable
Working load limit	1–45 ton
Sizes tabulated	10

Missing a spec? It's available on request — send us your requirement.

10 sizes available. Quote by part number, or send us the load and we'll size it.

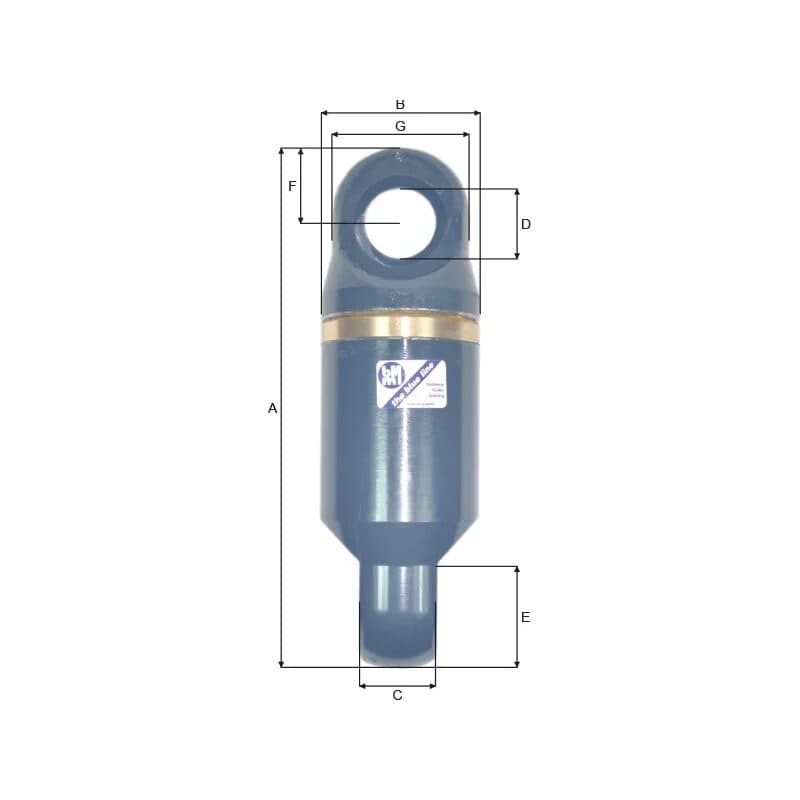

Swivels — Steel, Tapered roller thrust bearing, Greaseable (A401–AT445) — sizes and part numbers
Part no.	WLL 5:1(ton)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight(kg)
A401	1.0	126	43	16	15	36	18	35	0.78
A402	2.0	157	54	20	20	45	22	45	1.55
A403	3.0	189	65	27	26	55	28	55	2.70
A405	5.0	220	70	33	30	64	33	60	3.95
AT408	8.0	250	85	42	34	73	39	75	6.80
AT412	12.0	295	95	50	41	86	45	86	10.75
AT417	17.0	360	120	57	45	113	55	108	20.40
AT422	22.0	435	131	60	52	118	63	118	24.70
AT432	32.0	500	160	65	59	132	73	140	45.00
AT445	45.0	700	220	102	74	190	100	200	130.00

Scroll the table sideways for all 10 columns.
