Swivels — Steel, Blue painted (A08STG–A19ST)

Available on request

Steel swivels in 6 sizes, 0.5–2.4 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

6 sizes available. Quote by part number, or send us the load and we'll size it.

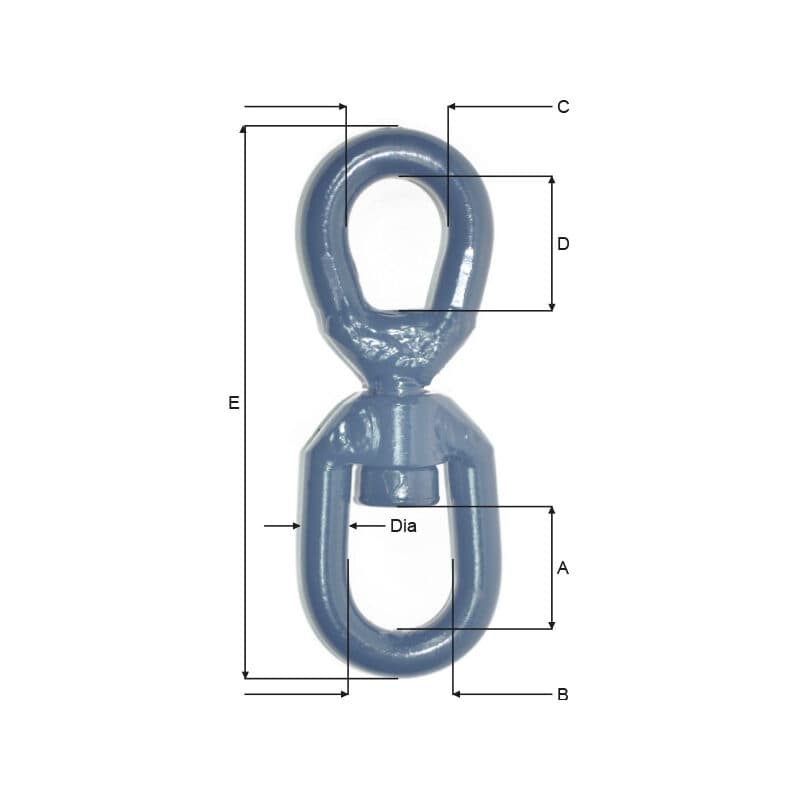

Swivels — Steel, Blue painted (A08STG–A19ST) — sizes and part numbers
Part no.	Dia.(mm)	WLL(ton)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Weight(kg)
A08STG	8	0.5	20	13	12	12	80	0.08
A10ST	10	0.6	32	28	25	31	123	0.23
A12ST	12	1.1	35	30	28	33	140	0.40
A14ST	14	1.3	40	38	33	37	168	0.65
A16ST	16	1.5	40	38	33	41	180	0.76
A19ST	19	2.4	50	38	35	47	200	1.30

Scroll the table sideways for all 9 columns.
