Swivels — Stainless steel, Tapered roller thrust bearing, Greaseable

Available on request

Stainless steel swivels in 2 sizes, 2–3 ton WLL.

Specifications

Material / finish	Stainless steel
Configuration	Tapered roller thrust bearing, Greaseable
Working load limit	2–3 ton
Sizes tabulated	2

Missing a spec? It's available on request — send us your requirement.

2 sizes available. Quote by part number, or send us the load and we'll size it.

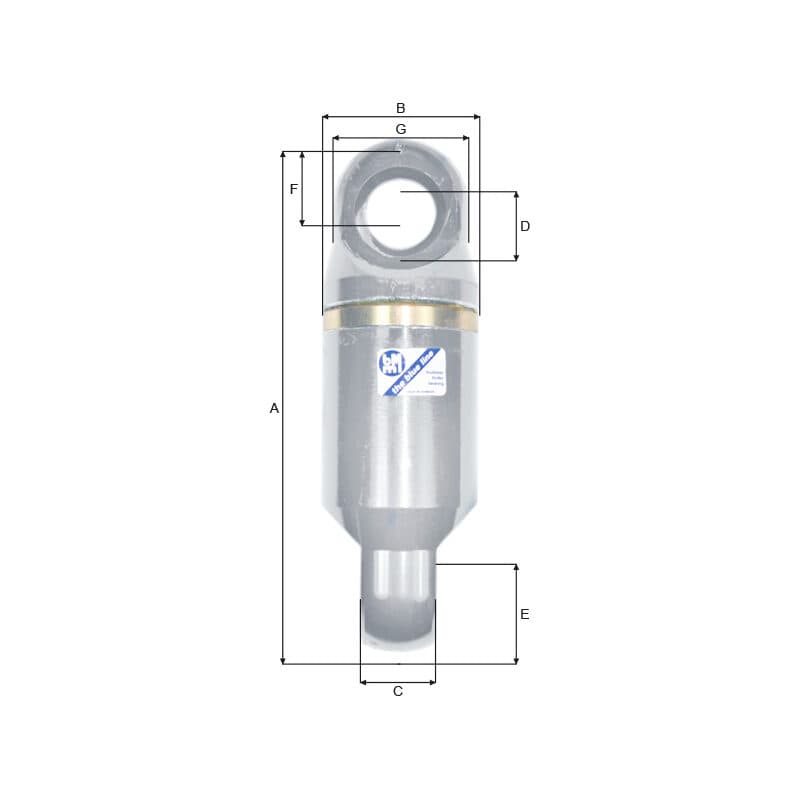

Swivels — Stainless steel, Tapered roller thrust bearing, Greaseable — sizes and part numbers
Part no.	WLL(ton)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)
A402SS	2.0	157	54	20	20	45	22	1.50
A403SS	3.0	189	65	27	26	55	28	2.75

Scroll the table sideways for all 9 columns.
