Swivels — Stainless steel, Bronze bushing

Available on request

Stainless steel swivels in 3 sizes, 4–8 ton WLL.

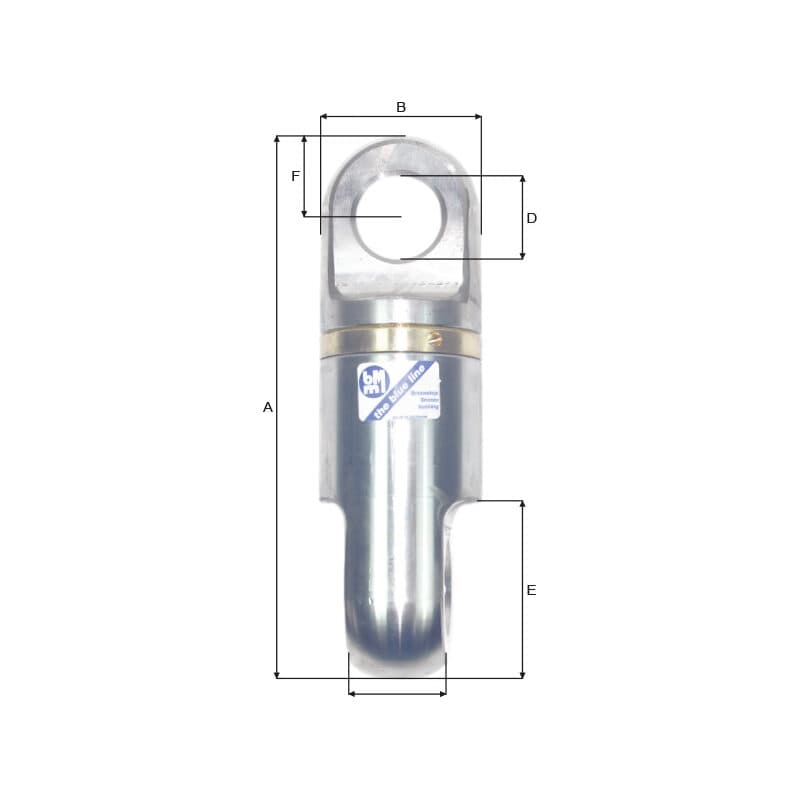

Swivels — Stainless steel, Bronze bushing — manufacturer dimension drawing

Specifications

Material / finishStainless steel
ConfigurationBronze bushing
Working load limit4–8 ton
Sizes tabulated3

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

3 sizes available. Quote by part number, or send us the load and we'll size it.

Swivels — Stainless steel, Bronze bushing — sizes and part numbers
Part no.WLL(ton)A(mm)B(mm)C(mm)D(mm)E(mm)F(mm)Weight(kg)
A3044.016949292650251.60
A3066.019758343060312.70
A3088.022468403469354.40

Scroll the table sideways for all 9 columns.

  • On order add letter C, e.g. A304C
