Swivels — Stainless steel (A16SSFL–A38SSFL)

Available on request

Stainless steel swivels in 7 sizes, 3.2–18 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

7 sizes available. Quote by part number, or send us the load and we'll size it.

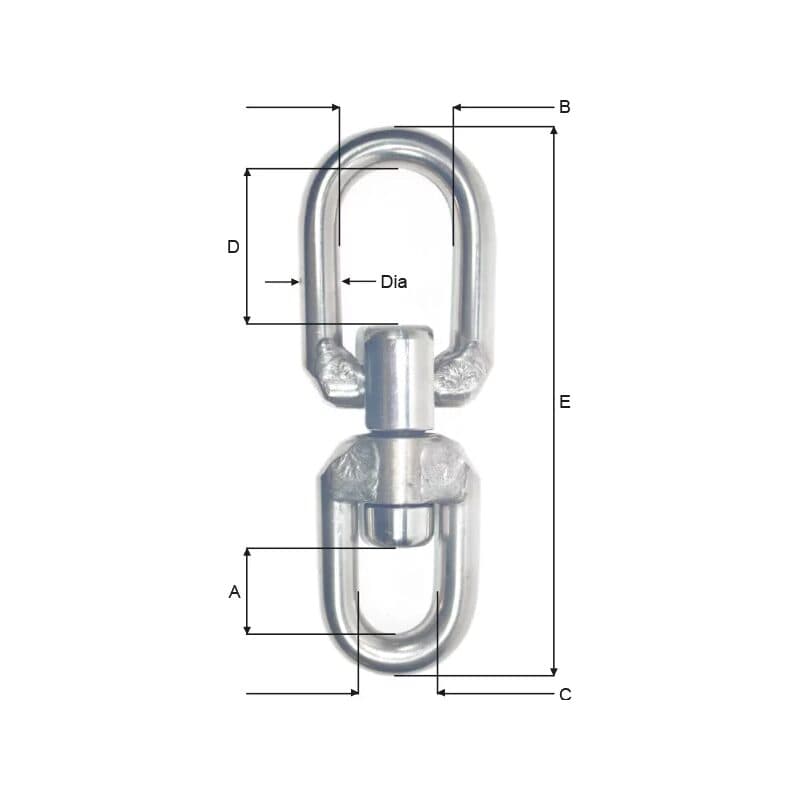

Swivels — Stainless steel (A16SSFL–A38SSFL) — sizes and part numbers
Part no.	Dia.(mm)	WLL 5:1(ton)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Weight(kg)
A16SSFL	16	3.2	41	38	55	75	225	1.6
A19SSFL	19	4.7	44	40	55	80	260	2.2
A22SSFL	22	6.3	44	40	60	83	285	3.1
A25SSFL	25	8.3	55	50	68	83	330	5.0
A28SSFL	28	10.4	55	50	68	95	345	6.5
A32SSFL	32	12	65	65	80	100	400	9.4
A38SSFL	38	18	65	70	80	100	455	14.6

Scroll the table sideways for all 9 columns.
