Stoppers (E90-30S–E90-40S)

Available on request

Stoppers in 2 sizes, 12–19 ton WLL.

Specifications

Working load limit	12–19 ton
Sizes tabulated	2

Missing a spec? It's available on request — send us your requirement.

2 sizes available. Quote by part number, or send us the load and we'll size it.

Stoppers (E90-30S–E90-40S) — sizes and part numbers

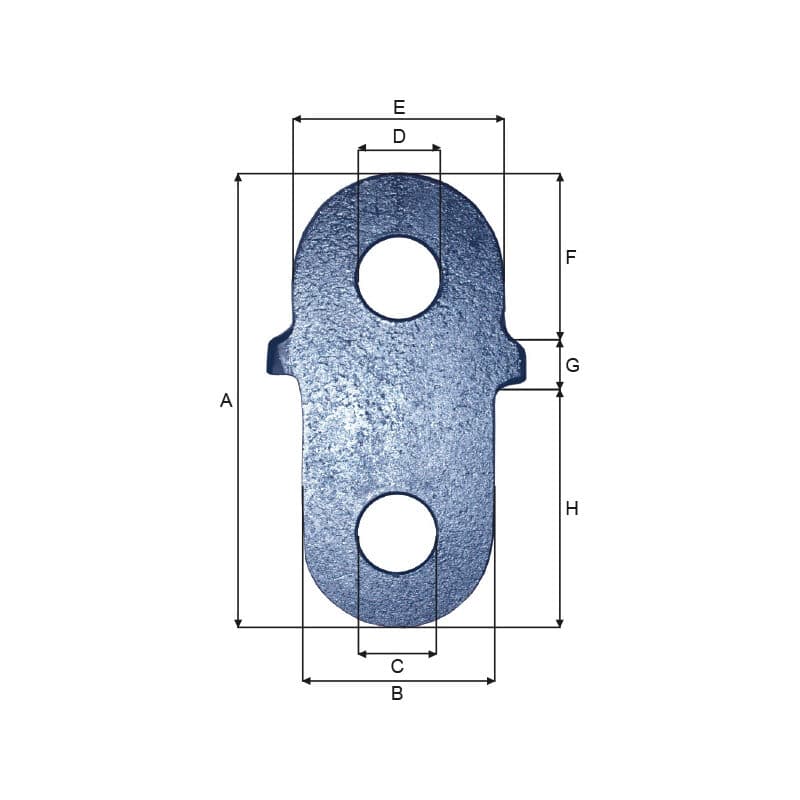

Part no.	WLL 5:1(ton)	Thickness(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	H(mm)	Weight(kg)
E90-30S	12.0	30	267	114	45	57	154	92	34	141	6.0
E90-40S	19.0	40	267	114	45	57	123	92	40	141	8.5

Scroll the table sideways for all 12 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
