Spectacles — Stainless steel

Available on request

Stainless steel spectacles in 6 sizes.

Specifications

Missing a spec? It's available on request — send us your requirement.

6 sizes available. Quote by part number, or send us the load and we'll size it.

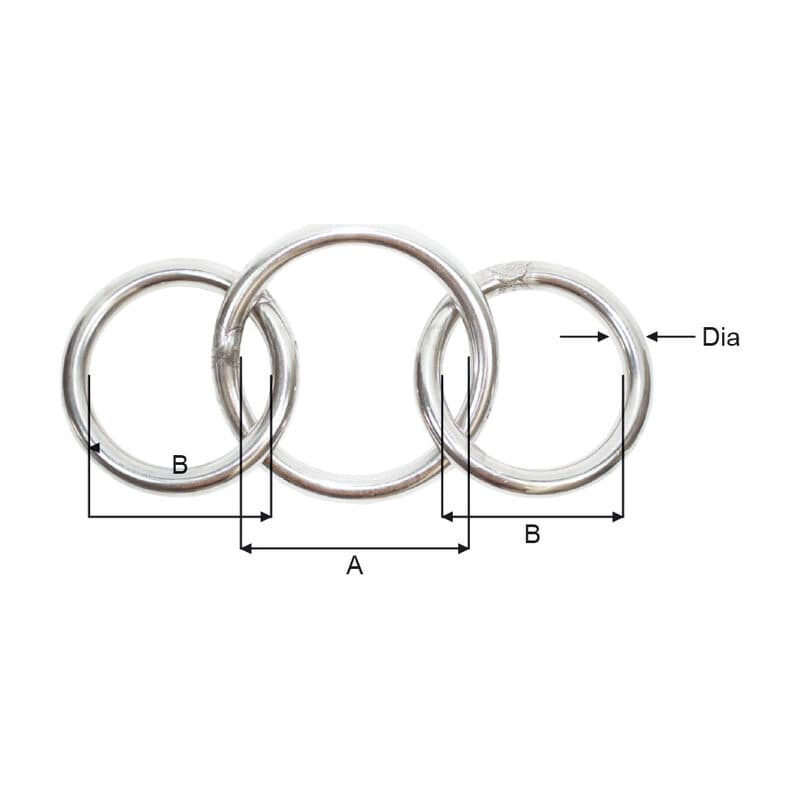

Spectacles — Stainless steel — sizes and part numbers
Part no.	Dia.(mm)	A(mm)	B(mm)	Weight(kg/100)
CS08SS/45-60-45	8	60	45	21.0
CS08SS/90-60-90	8	60	90	33.0
CS10SS/60-75-60	10	75	60	44.0
CS10SS/90-75-90	10	75	90	58.0
CS12SS/60-75-60	12	75	60	63.0
CS12SS/90-60-90	12	60	90	76.0

Scroll the table sideways for all 5 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
