Spacers — Steel, Heavy type

Available on request

Steel spacers in 7 sizes.

Specifications

Missing a spec? It's available on request — send us your requirement.

7 sizes available. Quote by part number, or send us the load and we'll size it.

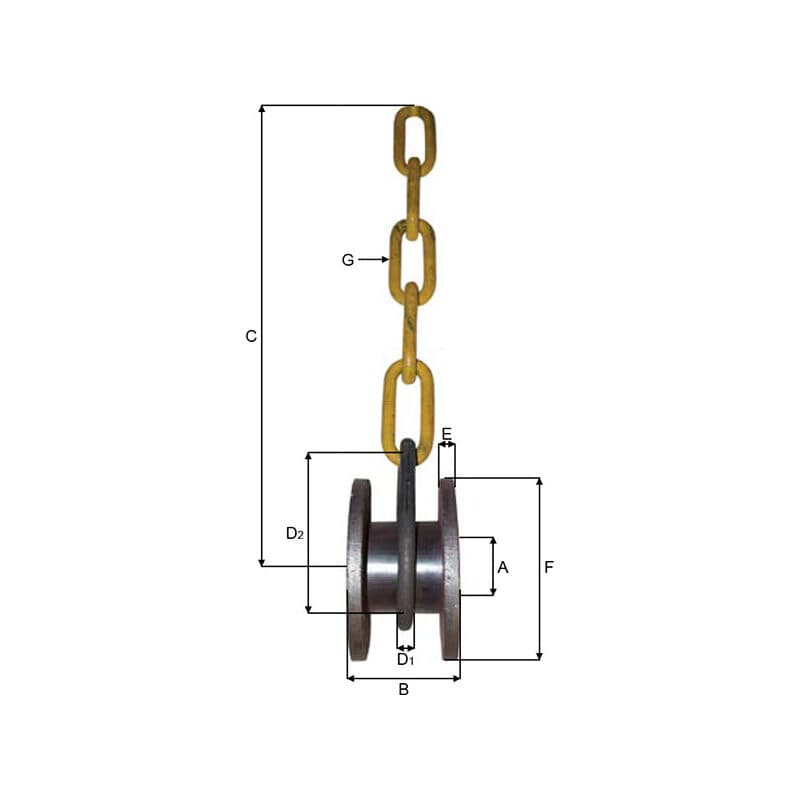

Spacers — Steel, Heavy type — sizes and part numbers
Part no.	A*(mm)	B(mm)	C(mm)	D1(mm)	D2(mm)	E(mm)	F(mm)	G	Weight(kg)
EDT16-075-05MLL13	61	76	428	16	165	10	134	13	3.64
EDT16-075-07MLL13	61	76	528	16	165	10	134	13	3.97
EDT16-075-10HLL11	61	76	836	16	165	10	134	11	4.15
EDT19-100-05MLL13	74	100	428	16	165	14	175	13	7.05
EDT19-100-07MLL13	74	100	528	16	165	14	175	13	7.38
EDT22-115-10HLL13	80	115	988	19	165	15	180	13	9.50
EDT22-115-13HLL13	80	115	1231	19	165	15	180	13	10.16

Scroll the table sideways for all 10 columns.
