Hampidjan Canada

Rollers with bow — Galvanized

Available on request

Galvanized rollers with bow in 4 sizes, 1–6.8 ton WLL.

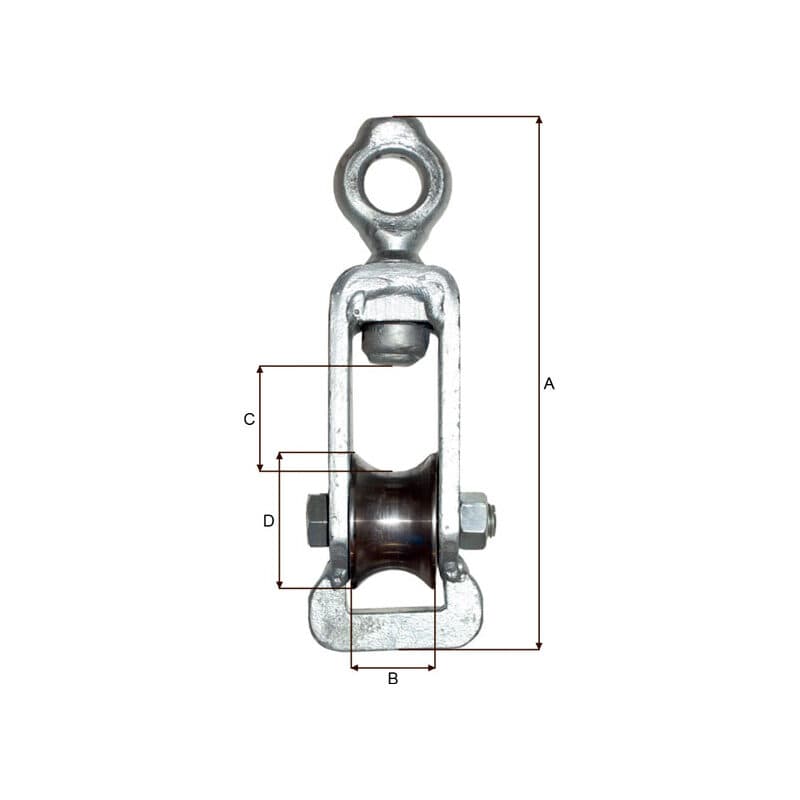

Rollers with bow — Galvanized — manufacturer dimension drawing

Specifications

Material / finishGalvanized
Working load limit1–6.8 ton
Sizes tabulated4

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

4 sizes available. Quote by part number, or send us the load and we'll size it.

Rollers with bow — Galvanized — sizes and part numbers
Part no.WLL 5:1(ton)A(mm)B(mm)C(mm)D(mm)Weight(kg)Spare sheave noSpare pin no
E13BG1.02504050602.1SE13PE13
E14BG3.62755050804.3SE14PE14
E15BG5.03205060805.6SE15PE15
E16BG6.83407070909.2SE16PE16

Scroll the table sideways for all 9 columns.
