Rollers — Galvanized

Available on request

Galvanized rollers in 3 sizes, 1–5 ton WLL.

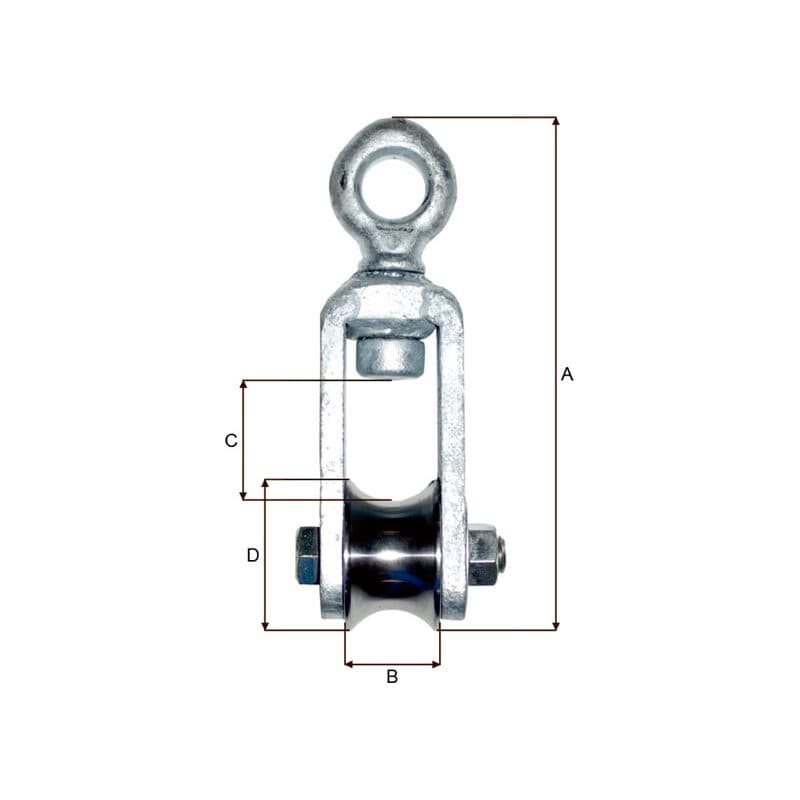

Rollers — Galvanized — manufacturer dimension drawing

Specifications

Material / finishGalvanized
Working load limit1–5 ton
Sizes tabulated3

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

3 sizes available. Quote by part number, or send us the load and we'll size it.

Rollers — Galvanized — sizes and part numbers
Part no.WLL 5:1(ton)A(mm)B(mm)C(mm)D(mm)Weight(kg)Spare sheave noSpare pin no
E13G1.02104050601.8SE13PE13
E14G3.62405050803.9SE14PE14
E15G5.02805060805.2SE15PE15

Scroll the table sideways for all 9 columns.
