Rockhopper stopwashers

Available on request

Rockhopper stopwashers in 4 sizes.

Specifications

Sizes tabulated	4

Missing a spec? It's available on request — send us your requirement.

4 sizes available. Quote by part number, or send us the load and we'll size it.

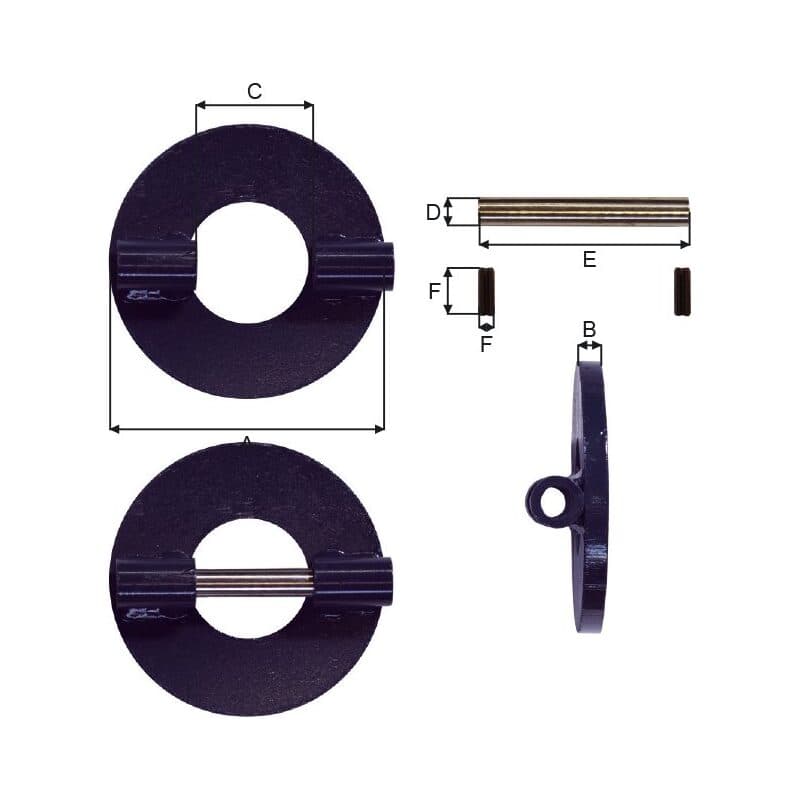

Rockhopper stopwashers — sizes and part numbers
Part no.	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)	F/chain dia.(mm)
MT10	106	10	40	10	83	6x20	0.76	10
MT13	114	10	52	14	88	6x25	1.10	13
MT16	150	12	62	15	117	6x26	1.65	16
MT19/22	200	13	80	20	137	10x32	3.6	19/22

Scroll the table sideways for all 9 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
