Rings — Oval, Stainless steel

Available on request

Stainless steel rings in 12 sizes, 1–15 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

12 sizes available. Quote by part number, or send us the load and we'll size it.

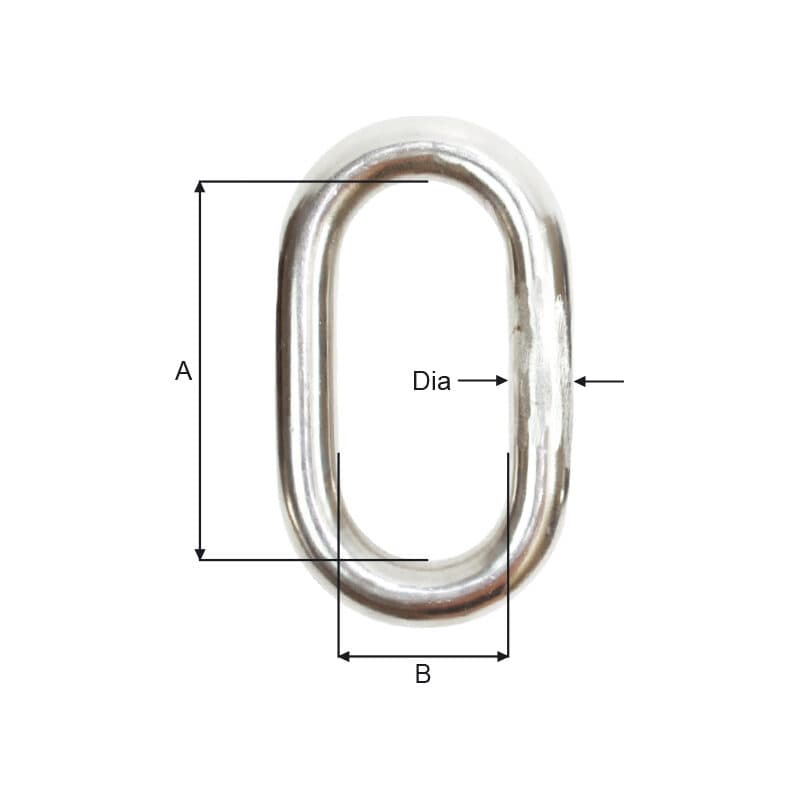

Rings — Oval, Stainless steel — sizes and part numbers
Part no.	Dia.(mm)	WLL(ton)	A(mm)	B(mm)	Weight(kg)
C12-70SSO	12	1.0	70	30	0.20
C16-85SSO	16	1.7	85	35	0.40
C19-110SSO	19	3.2	110	45	0.70
C22-120SSO	22	4.6	120	50	1.10
C25-130SSO	25	5.8	130	50	1.50
C25-150/80SSO	25	4.0	150	80	2.5
C28-150SSO	28	7.3	150	60	2.10
C30-150SSO	30	10.0	150	60	2.50
C30-150/80SSO	30	7.5	150	80	2.76
C32-150SSO	32	12.7	150	60	2.80
C35-160SSO	35	13.5	160	75	3.20
C38-150SSO	38	15.0	150	60	4.20

Scroll the table sideways for all 6 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
