Rigging screws — Stainless steel

Available on request

Stainless steel rigging screws in 9 sizes, 180–3400 kg WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

9 sizes available. Quote by part number, or send us the load and we'll size it.

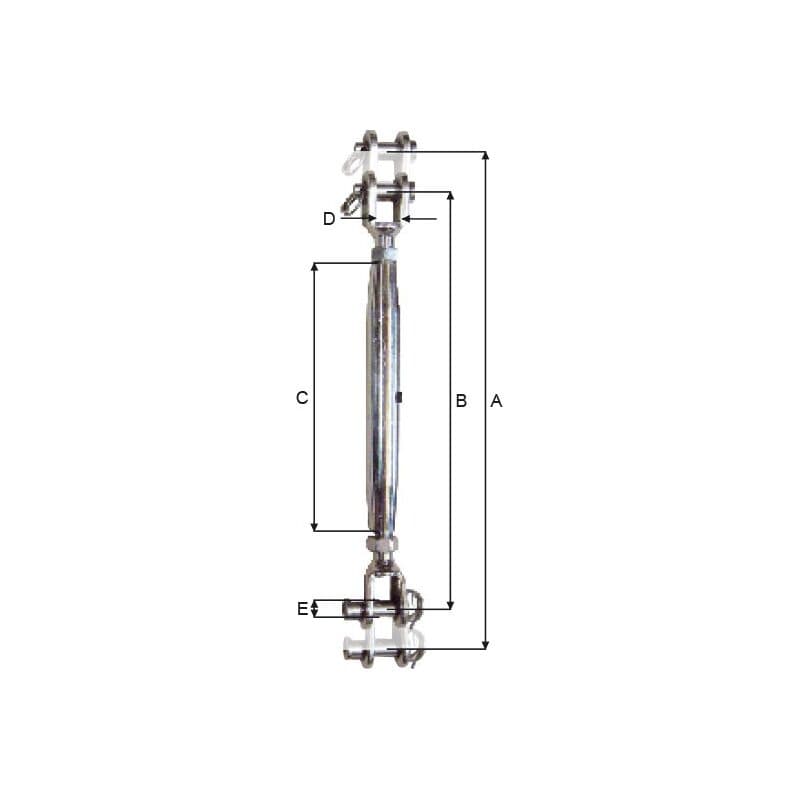

Rigging screws — Stainless steel — sizes and part numbers
Part no.	Dia.	WLL 5:1(kg)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Weight(kg/100)
G120005	5	180	180	126	80	8	5	5.1
G120006	6	250	200	138	92	8	5	9.0
G120008	8	350	234	158	112	10	6	14.0
G120010	10	700	272	188	120	11	8	24.0
G120012	12	1020	350	244	150	14	12	52.5
G120014	14	1180	387	267	170	14	12	63.5
G120016	16	1600	446	313	190	18	14	100.0
G120020	20	2600	550	390	220	22	19	197.0
G120022	22	3400	653	472	270	30	22	430.0

Scroll the table sideways for all 9 columns.
