Mounting plates between hinge suspension & shipconstruction

Available on request

Mounting plates in eight sizes, from 11 to 60 ton WLL.

Specifications

Working load limit	11–60 ton
Sizes tabulated	8

Missing a spec? It's available on request — send us your requirement.

8 sizes available. Quote by part number, or send us the load and we'll size it.

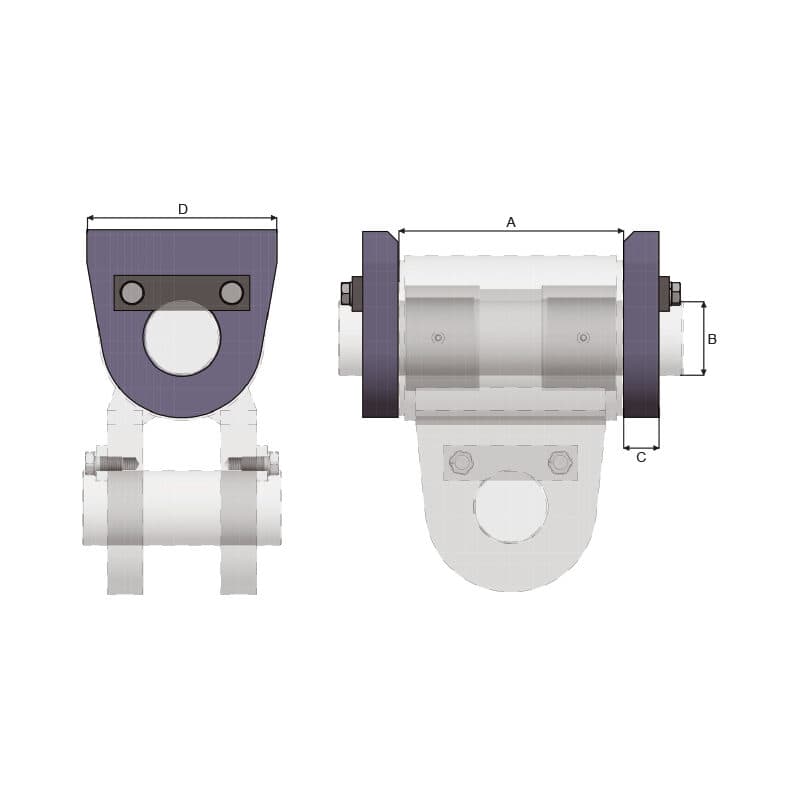

Mounting plates between hinge suspension & shipconstruction — sizes and part numbers
Part no.	WLL 5:1(ton)	A(mm)	B(mm)	C(mm)	D(mm)
K300-MP	11.0	207	58.6	20	180
K370-MP	13.0	227	78.6	30	200
K400-MP	15.0	227	78.6	30	200
K500-MP	20.0	312	78.6	30	240
K600-MP	30.0	312	106	40	255
K650-MP	30.0	312	106	40	255
K800-MP	40.0	320	106	50	270
K1000-MP	60.0	320	125	60	270

Scroll the table sideways for all 6 columns.
