Butterflies (E24–E29)

Available on request

Butterflies in 5 sizes, 4.2–8.5 ton WLL.

Specifications

Working load limit	4.2–8.5 ton
Sizes tabulated	5

Missing a spec? It's available on request — send us your requirement.

5 sizes available. Quote by part number, or send us the load and we'll size it.

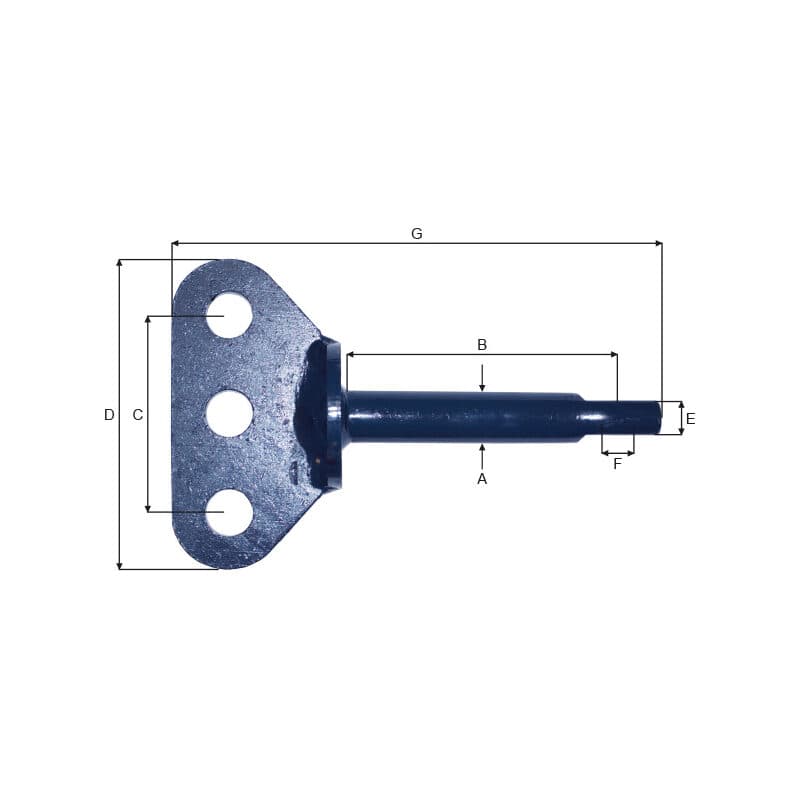

Butterflies (E24–E29) — sizes and part numbers
Part no.	WLL 5:1(ton)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Weight(kg)	For bobbins
E24	4.2	38	210	140	220	27	24	335	4.3	9”
E25	5.0	45	255	190	270	29	28	425	7.4	12”
E26	5.0	45	275	230	310	29	28	425	7.8	14”
E27	8.5	70	470	270	355	70	34	660	34.0	16” - 18”
E29	8.5	70	620	270	370	70	34	970	40.0	21” - 24”

Scroll the table sideways for all 11 columns.
